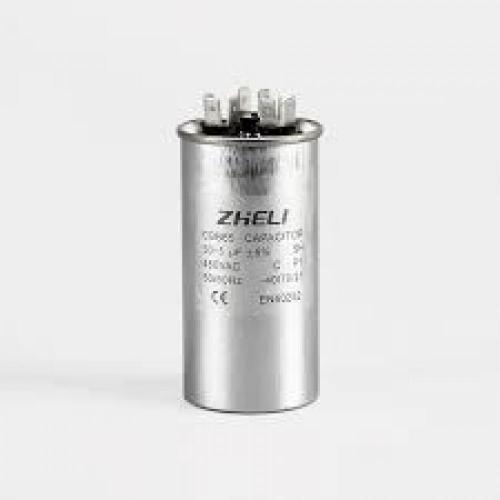

Air condition capacitors

Features

l  The capacitor takes heavy-edge metalizedAL/ZN PP film as dielectric,coiled by high speed winding machine, liquid filled aluminum case and protective device structure.

l  It is treated by using refined castor oil or wax as an impregnant in the hightemperature and vacuum environment to make the capacitor more stable with longworking life.

l  Using the second-age mechanical explosion prevention design tostrengthen the reliability

l  The product adopts single and combined structures."

Usages

The product is suitable for home appliances like air-conditioners,air coolers,freezers and washing machine,etc.

Rated voltage Un

Rated frequency

Capacutance tolerance

Climatic category

Loss tanget

Test voltage between terminals

Test voltage between terminals and case

Reference standard

205V/400V/450V.ac

50Hz;60Hz

±5%;±10%

=-25/85/21

tgδ≦0.002(100Hz)

2×Un for 2s

2×Un+1000VDC for 2s

EN 60252-1:2016
